This article is just that, my way of getting along with boredom... if it helps someone else, or fills his spare time, my joy will only be greater.

2

I don't know if you are in a club, but I've met numerous .NET developers who had much trouble with choosing the right tool to build reports. Apart from praise for the Access report building capabilities, you won't hear many compliments for the reporting tools.

I guess we have all tried Crystal Reports embedded into Visual Studio .NET - they are OK, but are demanding. And often, small bugs, along with ridiculous option placements, will drive you nuts.

SQL Reporting Services are somewhat a new option that is praised all over the web by Microsoft evangelists. In practice, however, I've often stumbled on projects where the team is paralyzed with problems concerning configuration and specific aspects of report writing.

Finally, there are numerous custom reporting frameworks such as ActiveReports or DevExpress' (I love these guys) Reporting Tools.

Specific maladies aside, the common problem with all the previously laid options is that they have a modest learning curve. I'm not talking about the time needed to acquire the knowledge for generating a list of employees from an "It's easy to use our report suite"™ example. I'm talking about the time needed to acquire the knowledge for developing real-life reports which have three tables that properly expand and contract (along with its columns and rows) over pages.

Also, none of these options provide you with the solution for frequent user requirements – when a report is rendered, it should be possible to modify it a bit. The workaround is to use report exporting to popular formats that are known to most users, like Word.

As I've experienced, this is the point when the bulb shines above the head of the developer and the idea comes - why not generate reports in Word in the first place. In the majority of projects, clients are provided with the needed output reports in Word format, which they print and fill by hand. And if not... well, you have one of the best "report designers" in the world, as it was tweaked and improved over numerous versions.

So, how to do it?

3

One big, big problem with Word documents before the 2003 version was their binary format. Word's file format was not publicly available, and all utilities that could parse it were mostly developed by reverse-engineering, or by stealing using documentation available to Microsoft partners. You can guess that results weren't too satisfying...

However, in 2003, Microsoft introduced XML formats for storing Office documents. Those formats were succeeded by Office Open XML formats in Office 2007 (which are default, instead of their binary counterparts), so you can safely bet that they are here to stay.

So, in order to generate a Word file now, you basically need to apply the appropriate XSLT (XSL Transform) onto the XML data used in a report. This process can be divided into several operational steps:

1. Defining the XML schema based on the report
2. Binding data from the Word document to the appropriate fields in XML schema
3. Saving the Word document in WordML format and the generation of XSLT using the WML2XSLT tool
4. Retrieving the needed data from a source (mostly a SQL Server database), it's structuring into appropriate XML
5. Applying XSLT onto XML data in order to generate the Word document, which then can be further manipulated (sending over wire, displaying to user, and similar)

The biggest problem is to produce valid XSLT; from five steps, three are taken to do that. The generation of XML is far easier, while the transformation is completely trivial.

4

Defining the XML schema based on the report

In order to start making the report, it is required to define the necessary data. A picture talks more than a thousand words, an example talks almost an equal amount... so let's look at the picture of the report that we'll use as an example:

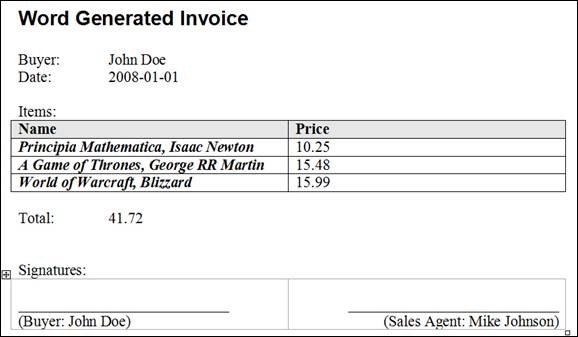

It is obvious that we first have the buyer's name, the document date follows. Then we have, from the developer point of view, an interesting table of invoice items... and so on. The structure of the XML which will hold this data is described using an XML schema. Visual Studio 2005 has nice support for visual design of schemas, which we will utilize – after starting the IDE, take option File –> New –> File (CTRL+N): this gives a list of possible document types from which we choose XML Schema.

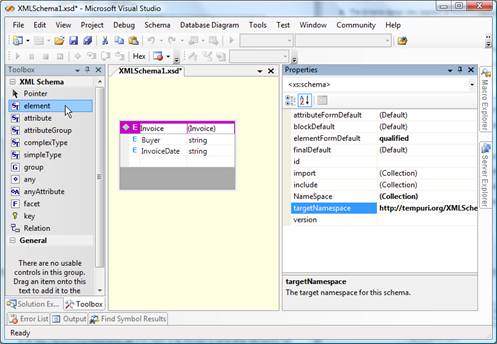

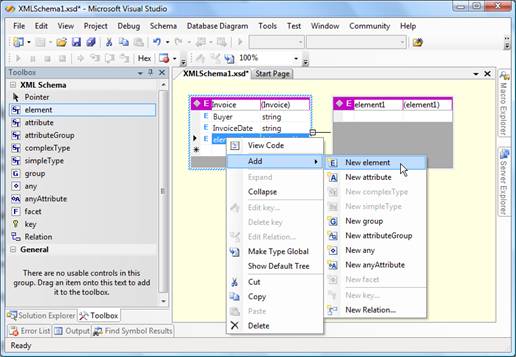

An element from the Toolbox should then be dragged-and-dropped on the workspace and filled with content. This process is shown on the picture that follows:

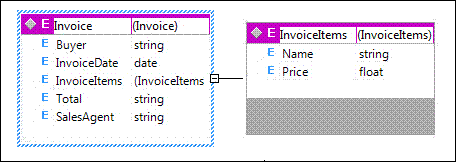

In order to be properly mapped, items on the invoice need to be described as child elements of the Invoice entity. Add -> New element from the context menu shown after right click gives the option to perform this action.

Adding the rest of the elements, assigning types to variables, and setting the targetNamespace (in the Properties window) gets the job done.

Assigning types to variables is optional in most cases – if you use special formats for printing out documents (like dd.MM.yyyy) or monetary values ($10.99), it's easier to leave everything in the schema in string type, and do the formatting and validation during the generation of XML with the data.

On the other hand, setting the targetNamespace shouldn't be optional – the produced schema will get the default value http://tempuri.org/XMLSchema.xsd. We can put aside the rules of good practice that tells us not to use the http://tempuri.org/ namespace in production; but, if you don't give unique names to your schemas, you'll stumble into problems during import and usage – Word's schema library can't hold two different schemas with the same namespace. So, be sure to set the targetNamespace (the convention http://Organization/Project/SchemaName.xsd is used mostly) before you close the definition.

Binding data from the Word document to the appropriate fields in the XML schema

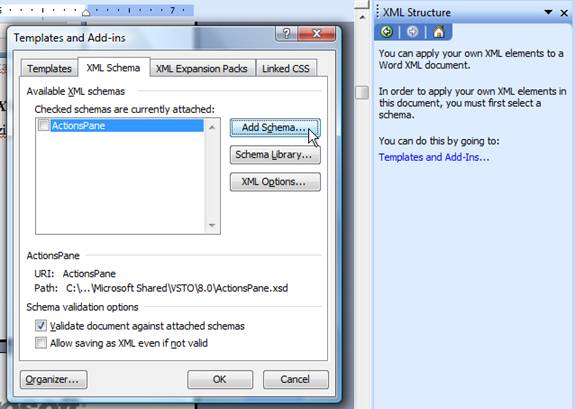

Schema importing is performed by using the XML Structure dialog. In the 2003 version of Office Word, this dialog is accessible through Tucancode.net Pane (CTRL+F1); it should be chosen from the list shown when clicked on the triangle in the header (left from the small x). If schemas aren't previously imported, and the Template and Add-Ins option is chosen, the picture that follows will faithfully resemble the resulting state of the screen.

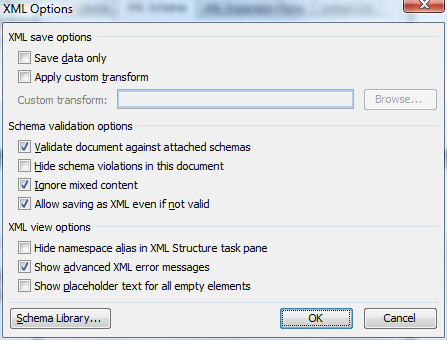

In the dialog shown after clicking on the Add Schema button, it is needed to point to the location of the defined XML schema. Its fields will be then shown in the XML Structure dialog, from where they are further bound to the document data. Before starting that sweet job, some additional options should be set:

• Check Ignore mixed content – This allows mixing data from the XML with data from the document. As documents are almost always made of fixed and variable parts, this avoids frequent signalization by Word that between the data defined in the XML schema there are "some others that don't belong there".
• Check Show advanced XML error messages – Choosing developer-friendly messages over user-friendly ones.
• Check Allow saving as XML even if not valid – Most often, you just can't "validly" mark data in the report document. For example, if some data from the XML is used twice in the document, Word will signal error in validation because according to the XML schema, that data appears only once. The same problem happens with order.

  This is present to force valid entry of data in the Word document (another application of the technique that is being described). However, our current goal is diametrically opposite – we are not marking fields for entry, but for space in which data from the XML will be inserted, so it's not needed to force a unique appearance and order.

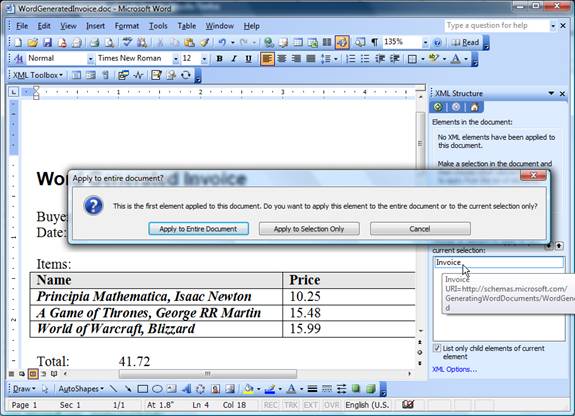

After the schema is imported in to the document and the options set, it's time to move onto binding the schema and the data. Initially, only the root element (in our case, Invoice) is available. After choosing it, Word will offer options for assigning the schema to the appropriate range in the document.

In this example, applying the schema to the entire document is a needed option (possible multi-schematic Word files aren't interesting from the reporting point of view). Now, what is left is to mark the data – the selected text is bound to the schema either by choosing the field from the Tucancode.net Pane, or by using the option Apply XML Element shown after a right click.

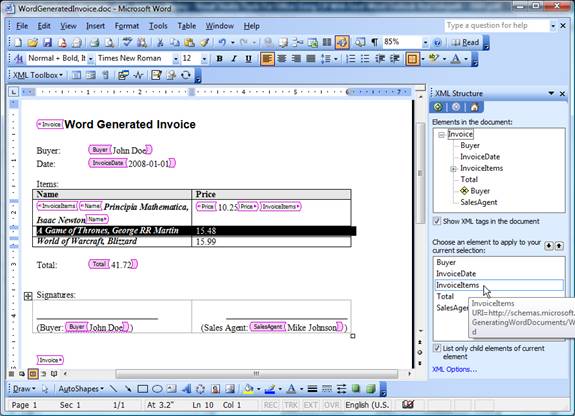

Two things are interesting here. First, to define child items, you need to select and map the whole row in the table to the InvoiceItems element, after which Name and Price will be available for bounding to the cell's data. If the document contains a large number of items, there is no need to map every single row; mapping just the first row is fine, the rest can be deleted. The structure of report, not the content, is what matters at the moment.

Second, Word, for previously explained reasons, signals error for double usage of the Buyer element (look at the picture). It'll cause problems later, during the generation of the XSLT, but we can omit that problem for now (if Allow saving as XML even if not valid is checked in the XML options).

Saving into WordML and the generation of XSLT

The marked document contains all the data needed for the generation of valid XSLT. The WML2XSLT tool accepts WordML as input, so it's required to save the Word document in this format. You can do this by using the Save As option from the File menu – when the dialog is shown in Save as Type, choose XML document (*.xml). The option Apply transform is used in the opposite direction, Data only when XML data is fetched from the document, so both fields should be left unchecked.

The prepared WML file is processed using this statement in the Command Prompt (the following is valid assuming that everything is in the same directory):

WML2XSLT.exe "WordGeneratedInvoice.xml" –o "WordGeneratedInvoice.xslt"

In case you run into problems (FileNotFoundException) while using the WML2XSLT.exe packed with the article source, be sure to download the tool from the previously given link and perform the installation (as mobfigr noted in his comment).

Solving problems with multiple used elements

The generated XSL transform will almost always be satisfying. One exception is when an element from the XML with data is used multiple times. In the example we are developing, the Buyer element is used twice, and for its second appearance, the following will be generated (you need to open the XSLT in Notepad or Visual Studio .NET and search for the value ns1:Buyer):

<w:r> <w:t><xsl:text>(Buyer: </xsl:text></w:t></w:r>
<xsl:apply-templates select="ns1:Buyer[position() >= 2]" />
<w:r> <w:t><xsl:text>)</xsl:text></w:t></w:r>

It's obvious we aren't interested in the element Buyer on the second position, but the same one that is referenced earlier in the file. Because of that, the following correction should be made:

<w:r> <w:t><xsl:text>(Buyer: </xsl:text></w:t></w:r>
<xsl:apply-templates select="ns1:Buyer" />
<w:r> <w:t><xsl:text>)</xsl:text></w:t></w:r>

Inserting images into the document

Naturally, WordML has good support for images, but it is very poorly documented. So, in order to see how images are represented in WML format, we'll perform a little experiment and save the marked Word document displayed below as XML:

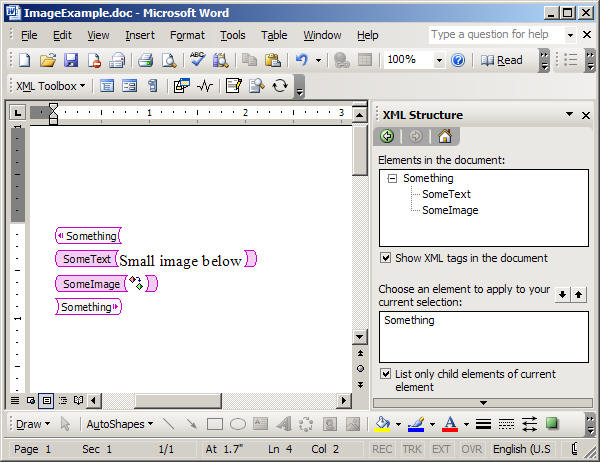

After processing the saved document using the WML2XML tool (with the WML2XML ExampleImage.xml -o ExampleImage.xslt command), and opening the generated XSLT file, we can scroll to the SomeImage tag and see the following:

<ns0:SomeImage>
  <xsl:for-each select="@ns0:*|@*[namespace-uri()='']">
    <xsl:attribute name="{name()}" namespace="{namespace-uri()}">
      <xsl:value-of select="." />
    </xsl:attribute>
  </xsl:for-each>
  <w:r>
    <w:pict>
      <v:shapetype id="_x0000_t75" coordsize="21600,21600" o:spt="75"
              o:preferrelative="t" path="m@4@5l@4@11@9@11@9@5xe" filled="f" stroked="f">
        <v:stroke joinstyle="miter" />
        <v:formulas>
          <v:f eqn="if lineDrawn pixelLineWidth 0" />
          <v:f eqn="sum @0 1 0" />
          <v:f eqn="sum 0 0 @1" />
          <v:f eqn="prod @2 1 2" />
          <v:f eqn="prod @3 21600 pixelWidth" />
          <v:f eqn="prod @3 21600 pixelHeight" />
          <v:f eqn="sum @0 0 1" />
          <v:f eqn="prod @6 1 2" />
          <v:f eqn="prod @7 21600 pixelWidth" />
          <v:f eqn="sum @8 21600 0" />
          <v:f eqn="prod @7 21600 pixelHeight" />
          <v:f eqn="sum @10 21600 0" />
        </v:formulas>
        <v:path o:extrusionok="f" gradientshapeok="t" o:connecttype="rect" />
        <o:lock v:ext="edit" aspectratio="t" />
      </v:shapetype>
      <w:binData w:name="wordml://01000001.gif">R0lGODlhEAAQAPIGAAAAAAAAsACwALAAALD/sP+wsP
   ///////yH5BAEAAAcALAAAAAAQABAAAAOW
eHd3h3d3d3h3d4d3cHd4d3eHd3cHWHAXgXF3d3gHVYNwZxZ4d3eAVTUDeHdhh3d3UFgDdocRcXd4
d1CAdncXaHZ3h3dgd3h3Z4d3d3d4d3eHB3d3eHd3h3d3QAh3d4d3d3d4QCSAd3d3eHcHhEQicHh3
d4d3B0QoYHeHd3d3eAcEhnd3d3h3d4cHdnd4d3eHd3d3eHeXADu=
</w:binData>
      <v:shape id="_x0000_i1025" type="#_x0000_t75" style="width:12pt;height:12pt">
        <v:imagedata src="wordml://01000001.gif" o:title="convert" />
      </v:shape>
    </w:pict>
  </w:r>
  <w:p>
    <w:r>
      <w:t>
        <xsl:value-of select="." />
      </w:t>
    </w:r>
  </w:p>
</ns0:SomeImage>

Obviously, the image is Base64 encoded into the XML file between the <w:binData> tags. After that, we have the <v:shape> tag which defines the placing of the image and references the encoded binary data by using <v:imagedata>. All this is preceded by <v:shapetype>, which is (luckily) optional and can be removed. Now, when we have some understanding of the format, we can perform a little clean up and properly place xsl:value-of select, so that binary data comes from our XML file:

<ns0:SomeImage>
  <xsl:for-each select="@ns0:*|@*[namespace-uri()='']">
    <xsl:attribute name="{name()}" namespace="{namespace-uri()}">
      <xsl:value-of select="." />
    </xsl:attribute>
  </xsl:for-each>
  <w:r>
    <w:pict>
      <w:binData w:name="wordml://01000001.gif"><xsl:value-of select="." /></w:binData>
      <v:shape id="_x0000_i1025" type="#_x0000_t75" style="width:12pt;height:12pt">
        <v:imagedata src="wordml://01000001.gif" o:title="convert" />
      </v:shape>
    </w:pict>
  </w:r>
</ns0:SomeImage>

It looks better, doesn't it? All that is left is to supply the XML data in the proper format:

<?xml version="1.0" encoding="utf-8" ?>
<Something xmlns="http://schemas.microsoft.com/GeneratingWordDocuments/ImageExample.xsd">
    <SomeText>Small image below</SomeText>
    <SomeImage>R0lGODlhE[-- binary data truncated --]3d3eHeXADu=</SomeImage>
</Something>

and we'll have the document from Figure 9 in no time. One final word of warning - if your images aren't always the same size, you'll want to check the style attribute of the <v:shape> tag. And, after checking, you'll probably want to move it out of the transformation into XML ;). Here is how to do that:

<w:pict>
  <w:binData w:name="wordml://01000001.gif">
      <xsl:value-of select="." />
  </w:binData>
    <v:shape id="_x0000_i1025" type="#_x0000_t75">
        <xsl:attribute name="style">
            <xsl:value-of select="@style"/>
        </xsl:attribute>
        <v:imagedata src="wordml://01000001.gif" o:title="convert" />
    </v:shape>
</w:pict>

<?xml version="1.0" encoding="utf-8" ?>
<Something xmlns="http://schemas.microsoft.com/GeneratingWordDocuments/ImageExample.xsd">
    <SomeText>Small image below</SomeText>
    <SomeImage style="width:24pt;height:24pt">R0lGOD[-- binary data truncated --]3d3eADu=
    </SomeImage>
</Something>

Opening the document in read-only mode

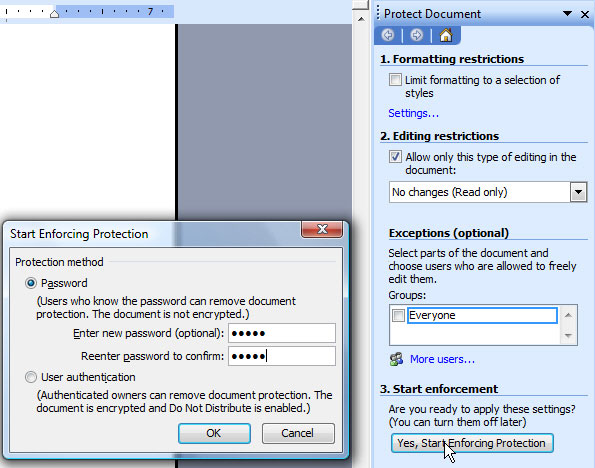

To force opening the report in read-only mode when the report is displayed to the user, it's needed to use the Tools -> Options -> Security -> Protect Document option during the document creation. Under Editing Restrictions, 'No changes (Read only)' should be chosen... after that, the only thing left to do is click onto 'Yes, Start Enforcing Protection' and enter the password for protection. Of course, further steps remain the same - the document is saved as WordML, processed through the WML2XSLT tool...

Do not expect too much from this "protection". In WordML format, it's enforced by one line in the DocumentProperties element:

  <w:docPr>
    <w:view w:val="print" />
    <w:zoom w:percent="85" />
    <w:doNotEmbedSystemFonts />
    <w:proofState w:spelling="clean" w:grammar="clean" />
    <w:attachedTemplate w:val="" />
    <u><w:documentProtection w:edit="read-only" w:enforcement="on"
                             w:unprotectPassword="4560CA9C" /></u>
    <w:defaultTabStop w:val="720" />
    <w:punctuationKerning />
    <w:characterSpacingControl w:val="DontCompress" />
    <w:optimizeForBrowser />
    <w:validateAgainstSchema />
    <w:saveInvalidXML />
    <w:ignoreMixedContent />
    <w:alwaysShowPlaceholderText w:val="off" />
    <w:compat>
      <w:breakWrappedTables />
      <w:snapToGridInCell />
      <w:wrapTextWithPunct />
      <w:useAsianBreakRules />
      <w:dontGrowAutofit />
    </w:compat>
    <w:showXMLTags w:val="off" />
  </w:docPr>

This means that the read-only mode can be easily incorporated into XSLT for reports you've already done... but, it also means that anyone knowing WML format can easily workaround your "protection". So, use it wisely :)

5

T-SQL and XML

XML data that satisfies the previously defined schema and which we'll use in the report can be generated in many ways. The most commonly used is the one that utilizes the SELECT... FOR XML command and data from SQL Server 2005 that directly translates into XML.

SELECT... FOR XML has two parameters:

1. Work mode, chosen from RAW, AUTO, EXPLICIT, and the PATH array. In general, the AUTO mode will finish the job; when extra formatting is needed, the PATH mode is the choice.
2. Additional variables like ROOT (add a root tag to XML), ELEMENTS (format output data as elements), TYPE (result is returned as XML type of SQL Server 2005), and XMLSCHEMA (write XML schema before data).

For example, if there is a c_City table with columns CityId and CityName, and XML with element City is needed, the following T-SQL is required:

SELECT CityId, CityName FROM c_City AS City
FOR XML AUTO

<City CityId="43" CityName="100 Mile House" />
<City CityId="53" CityName="Abbotsford" />

If it's needed to write out data in elements, the ELEMENTS directive is added:

SELECT CityId, CityName FROM c_City AS City
FOR XML AUTO, ELEMENTS

<City>
  <CityId>43</CityId>
  <CityName>100 Mile House</CityName>
</City>
<City>
  <CityId>53</CityId>
  <CityName>Abbotsford</CityName>
</City>

As two elements exist on the first level, Root tag must be added so that the XML is syntactically valid:

SELECT CityId, CityName FROM c_City AS City
FOR XML AUTO, ELEMENTS, ROOT('Root')

<Root>
  <City>
    <CityId>43</CityId>
    <CityName>100 Mile House</CityName>
  </City>
  <City>
    <CityId>53</CityId>
    <CityName>Abbotsford</CityName>
  </City>
</Root>

Let's assume that there is a c_PostalCode table with postal codes used in cities. If it's required to make XML where postal codes will be child element of cities, the following SQL is in order:

SELECT CityId, CityName,
    (SELECT PostalCodeId, PostalCodeName FROM c_PostalCode
     WHERE CityId = City.CityId
     FOR XML AUTO, TYPE)
FROM c_City AS City
FOR XML AUTO, TYPE

<Root>
  <City CityId="43" CityName="100 Mile House">
    <c_PostalCode PostalCodeId="317701" PostalCodeName="V0K2Z0" />
    <c_PostalCode PostalCodeId="317702" PostalCodeName="V0K2E0" />
  </City>
  <City CityId="53" CityName="Abbotsford">
    <c_PostalCode PostalCodeId="317703" PostalCodeName="V3G2J3" />
  </City>
</Root>

If more output flexibility is required, it's possible to format the XML in more detail using the PATH mode. For example, if it's needed to hold CityId as an attribute, CityName as an element, and information about postal codes as child elements which PostalCodeId places in the NotNeeded sub element, use this T-SQL:

SELECT CityId AS '@CityId', CityName,
    (SELECT PostalCodeId AS 'NotNeeded/PostalCodeId', PostalCodeName
     FROM c_PostalCode
     WHERE CityId = City.CityId
     FOR XML path('PostalCode'), TYPE)
FROM c_City AS City
FOR XML PATH('CityRow'), type, root('Data')

<Data>
  <CityRow CityId="43">
    <CityName>100 Mile House</CityName>
    <PostalCode PostalCodeName="V0K2Z0">
      <NotNeeded>
        <PostalCodeId>317701</PostalCodeId>
      </NotNeeded>
    </PostalCode>
    <PostalCode PostalCodeName="V0K2E0">
      <NotNeeded>
        <PostalCodeId>317702</PostalCodeId>
      </NotNeeded>
    </PostalCode>
  </CityRow>
  <CityRow CityId="53">
    <CityName>Abbotsford</CityName>
    <PostalCode PostalCodeName="V3G2J3">
      <NotNeeded>
        <PostalCodeId>317703</PostalCodeId>
      </NotNeeded>
    </PostalCode>
  </CityRow>
</Data>

Binding XML to schema

For the XML data to be shown in Word, it's necessary that the xmlns attribute of the root tag points to the appropriate schema. To be precise – in our example, to show the XML data in the generated Word document, it's not enough to provide just the following output from SQL:

SELECT Buyer, InvoiceDate, ...
FROM Invoice
FOR XML PATH('Invoice'), ELEMENTS

<Invoice>
    <Buyer>John Doe</Buyer>
    <InvoiceDate>2008-01-01</InvoiceDate>
    ...
</Invoice>

It's needed to set the xmlns attribute in such a manner to point to the targetNamespace of the WordGeneratedInvoice.xsd schema:

WITH XMLNAMESPACES(DEFAULT
   'http://schemas.microsoft.com/GeneratingWordDocuments/WordGeneratedInvoice.xsd')
SELECT Buyer, InvoiceDate, ...
FROM Invoice
FOR XML PATH('Invoice'), ELEMENTS

<Data xmlns="http://schemas.microsoft.com/GeneratingWordDocuments/WordGeneratedInvoice.xsd">
    <Buyer>John Doe</Buyer>
    <InvoiceDate>2008-01-01</InvoiceDate>
    ...
</Invoice>

A blank Word document is the most common result if the XML data is not bound to the schema over an xmlns attribute.

6

public static byte[] GetWord(XmlReader xmlData, XmlReader xslt)
{
    XslCompiledTransform xslt = new XslCompiledTransform();
    XsltArgumentList args = new XsltArgumentList();

    using (MemoryStream swResult = new MemoryStream())
    {
        xslt.Load(xslt);
        xslt.Transform(xmlData, args, swResult);

        return swResult.ToArray();
    }
}

It's mentioned earlier that this step is trivial. The example justifies that, doesn't it?

After the XML data and the XSL transformation are passed as XmlReader objects, an XslCompiledTransform is initialized through the Load method. All that is left is to call Transform to finish the job.

7

In case you don't need advanced capabilities that Word provides (page numbering, margins, and similar), you have a pretty handy option of hand-writing XSLT that transforms XML data to HTML and then just opens HTML in Word.

To illustrate the idea with an example – here is an XSLT that I use for a list report that just shows the contents of a CD DataTable with two columns, Title and Price:

<?xml version='1.0' encoding='UTF-8' ?>
<xsl:stylesheet xmlns:xsl='http://www.w3.org/1999/XSL/Transform' version='1.0'
xmlns:fo='http://www.w3.org/1999/XSL/Format'
xmlns:fn='http://www.w3.org/2003/11/xpath-functions'
xmlns:xf='http://www.w3.org/2002/08/xquery-functions'>
    <xsl:template match='/'>
        <html>
            <body>
                <h2>Report Header</h2>
                <table border='0' width='100%'>
                    <tr bgcolor='Gray'>
                        <th align='left'>Title</th>
                        <th align='left'>Price</th>
                    </tr>
                    <xsl:for-each select='DocumentElement/Cd'>
                        <tr>
                            <td>
                                <xsl:value-of select='Title'/>
                            </td>
                            <td>
                                <xsl:value-of select='Price'/>
                            </td>
                        </tr>
                    </xsl:for-each>
                </table>
            </body>
        </html>
    </xsl:template>
</xsl:stylesheet>

The XML data which is transformed:

<?xml version='1.0' encoding='UTF-8' ?>
<DocumentElement>
    <Cd>
        <Title>Mike</Title>
        <Price>20$</Price>
    </Cd>
    <Cd>
        <Title>Nike</Title>
        <Price>30$</Price>
    </Cd>
    <Cd>
        <Title>Reebok</Title>
        <Price>40$</Price>
    </Cd>
</DocumentElement>

When the xsl:template tag is matched (and it'll be matched always because it points to root), its InnerText is evaluated. The xsl:for-each tag processes each of the DocumentElement/Cd nodes, and xsl:value-of gets the InnerText of the XPath selected element. In case you're not too good with XSLT, I recommend this webpage: W3Schools. W3Schools, you rock! :)

Resulting HTML:

<html xmlns:fo="http://www.w3.org/1999/XSL/Format"
xmlns:fn="http://www.w3.org/2003/11/xpath-functions"
xmlns:xf="http://www.w3.org/2002/08/xquery-functions">
    <body>
        <h2>Something</h2>
        <table border="0" width="100%">
            <tr bgcolor="Gray">
                <th align="left">Title</th>
                <th align="left">Price</th>
            </tr>
            <tr>
                <td>Mike</td>
                <td>20$</td>
            </tr>
            <tr>
                <td>Nike</td>
                <td>30$</td>
            </tr>
            <tr>
                <td>Reebok</td>
                <td>40$</td>
            </tr>
        </table>
    </body>
</html>

Word, even in versions earlier than 2003, had no any problems with opening HTML; so, just save the result as .doc (instead of .HTML) and you'll be done. In case you are sending the response over the Web, you can specify the type with:

Response.AddHeader("content-type", "application/msword");
Response.AddHeader("Content-Disposition", "attachment; filename=report.doc");

The true value of this option comes into light when you start thinking about generic reports. In the source code that accompanies this article, you'll find a generic version of this example, the one that works with any DataTable. Be sure to check it.

Organization of resources used for the generation in the Visual Studio project

The source code I have attached to this article demonstrates one possible way of organizing the needed resources for the Word reports generation. Here is the project structure:

It is of utmost importance that Embedded Resource is set on the Build Action for all the resources that are used in the generation of the Word document (XML, XSD, XSLT). This enables their later fetching from the resource collection of the compiled DLL.

Reports are generated through a static Report class which represents the facade to embedded resources and the logic exploiting them:

public class Report
{
    /// <summary>
    /// Generates Demonstration Report
    /// </summary>
    /// <returns>Resulting Word document as Byte array</returns>
    public static byte[] WordGeneratedInvoice()
    {
        // Get data as XML... for demonstration prepared XML is used,

        // in real implementation scenario this data would be

        // fetched from SQL Server

        string xmlData = Getters.GetTestXml("WordGeneratedInvoice");
        return Getters.GetWord(xmlData, "WordGeneratedInvoice");
    }

    // ... //


    /* Add Report methods here */

}

Adding new reports in this structure is easy:

• The new report for generation is added in the Doc directory.
• The XML schema which is created based on the report is added in the Xsd directory.
• After the schema is applied on the document, the saved WordML is used as the input in the WML2XSLT tool; the resulting XSLT is placed in the Xslt directory.
• A method is added in the Report class which is responsible for fetching XML data, invoking the transformation, and returning the resulting Word document.
