CodeWizard--A visual tool to automatically generate
C++ code files!
-- CObject
Introduction
CodeWizard Version 1.0 includes a serial of
tools that let's you visually create functionality on-screen and automatically
generate C++ code files! Currently it only includes a tool that can generate
source code from CObject class, but this is not the end, I will add many new code
wizards that will help you generate many other source codes. To make you known
how it works, all the source code is included within the zip files, you can modify
it freely. if you have any good ideas about this tool, please let me
known.
Below is the CObject code generator:

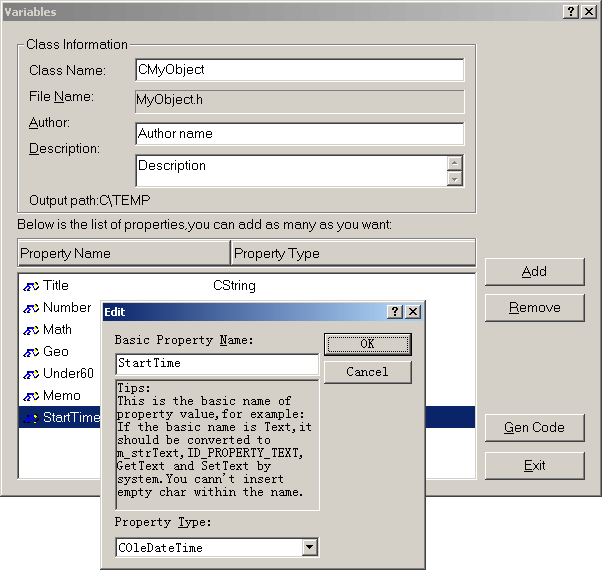

To use the code generator:
1. Select "Main Tools|&1
Generate Source Code based on CObject..." menu item, a setting dialog
will appear.
2. Enter a correct class name
at the first edit box, then you can enter the author name and the description
of this class.
3. Click "Add" button
to add as many variables as you want, all the variables will be list within the
list box.
4. Double click on the select item of
the list box, an edit dialog box will appear, you can now enter the new basic
variable name (Tips: Only the basic name of the variable name is needed, for
example: if the basic name is Text, it should be converted to
m_strText,ID_PROPERTY_TEXT, GetText and SetText by system, and you cann't enter
any empty char within the name). Currently it only support below types:
enum FO_VALUETYPE
{
V_EMPTY = -1,
V_BOOL, // BOOL value type.
V_STRING, // String value type
V_INT, // int value type
V_FLOAT, // float value type
V_DOUBLE, // double value type
V_DWORD, // DWORD value type
V_DATETIME, // COleDateTime value type
V_COLOR // COLORREF value type.
};
|
5. Click the "Generate Code"
button to generate the source file and header file.
Below is the details of the source code header
file:
#if !defined(FO_MYOBJECT_H__8F58549C_BAD3_4FE7_AE14_8C07BCD16A98__INCLUDED_)
#define UFC_MYOBJECT_H__8F58549C_BAD3_4FE7_AE14_8C07BCD16A98__INCLUDED_
#if _MSC_VER > 1000
#pragma once
#endif // _MSC_VER > 1000
//------------------------------------------------------
// Description
// Author: Author name.
//------------------------------------------------------
#include "FO_VALUE.h"
/////////////////////////////////////////////////////////////
// Property IDs define.
#define ID_PROP_TITLE 7000
#define ID_PROP_NUMBER 7001
#define ID_PROP_MATH 7002
#define ID_PROP_GEO 7003
#define ID_PROP_UNDER60 7004
#define ID_PROP_MEMO 7005
#define ID_PROP_STARTTIME 7006
class CMyObject : public CObject
{
DECLARE_SERIAL(CMyObject)
// Construction/Destruction
public:
// Constructor with ID.
CMyObject();
// Copy constructor.
CMyObject(const CMyObject& newObject);
// Destructor.
virtual ~CMyObject();
// Put value.
virtual BOOL PutValue(const int &nPropId,const FO_VALUE &Value);
// Get value.
virtual BOOL GetValue(FO_VALUE &Value,const int &nPropId);
// Create a copy of current object.
virtual CObject* Copy();
public:
// Return Title value.
CString GetTitle() const { return m_strTitle;}
// Change Title value.
void SetTitle( const CString &strValue ) {m_strTitle = strValue; }
// Return Number value.
int GetNumber() const { return m_nNumber;}
// Change Number value.
void SetNumber( const int &nValue ) {m_nNumber = nValue; }
// Return Math value.
float GetMath() const { return m_fMath;}
// Change Math value.
void SetMath( const float &fValue ) {m_fMath = fValue; }
// Return Geo value.
float GetGeo() const { return m_fGeo;}
// Change Geo value.
void SetGeo( const float &fValue ) {m_fGeo = fValue; }
// Return Under60 value.
BOOL GetUnder60() const { return m_bUnder60;}
// Change Under60 value.
void SetUnder60( const BOOL &bValue ) {m_bUnder60 = bValue; }
// Return Memo value.
CString GetMemo() const { return m_strMemo;}
// Change Memo value.
void SetMemo( const CString &strValue ) {m_strMemo = strValue; }
// Return StartTime value.
COleDateTime GetStartTime() const { return m_dtStartTime;}
// Change StartTime value.
void SetStartTime( const COleDateTime &dtValue ) {m_dtStartTime = dtValue; }
// Attributes
protected:
// FODO:Add your properties items below.
// Title value.
CString m_strTitle;
// Number value.
int m_nNumber;
// Math value.
float m_fMath;
// Geo value.
float m_fGeo;
// Under60 value.
BOOL m_bUnder60;
// Memo value.
CString m_strMemo;
// StartTime value.
COleDateTime m_dtStartTime;
public:
// Sets this set of font properties equal to another.
CMyObject& operator=(const CMyObject& newObject);
// Is equal.
virtual BOOL IsEqual(CObject* prop);
// Determines if another set of fill properties is equal to this one.
BOOL operator==(const CMyObject newObject) const;
// Serialize data to file.
virtual void Serialize(CArchive& ar);
// Implementation
public:
#ifdef _DEBUG
virtual void AssertValid() const;
virtual void Dump(CDumpContext& dc) const;
#endif
};
inline CObject* CMyObject::Copy()
{
return new CMyObject(*this);
}
#endif // !defined(UFC_MYOBJECT_H__8F58549C_BAD3_4FE7_AE14_8C07BCD16A98__INCLUDED_)
|
Below is the source code of source code file:
// MyObject.cpp : Defines the class behaviors for the application.
//
#include "stdafx.h"
#include "MyObject.h"
#ifdef _DEBUG
#undef THIS_FILE
static char THIS_FILE[]=__FILE__;
#define new DEBUG_NEW
#endif
/////////////////////////////////////////////////////////////////////////////
// CMyObject construction/destruction
IMPLEMENT_SERIAL(CMyObject, CObject,1)
// CMyObject | CMyObject | Constructor.
CMyObject::CMyObject() : CObject()
{
m_strTitle = _T("");
m_nNumber = 0;
m_fMath = 0.0f;
m_fGeo = 0.0f;
m_bUnder60 = TRUE;
m_strMemo = _T("");
m_dtStartTime = COleDateTime::GetCurrentTime();
}
CMyObject::CMyObject(const CMyObject& newObject)
{
m_strTitle = newObject.m_strTitle;
m_nNumber = newObject.m_nNumber;
m_fMath = newObject.m_fMath;
m_fGeo = newObject.m_fGeo;
m_bUnder60 = newObject.m_bUnder60;
m_strMemo = newObject.m_strMemo;
m_dtStartTime = newObject.m_dtStartTime;
}
// Destructor.
CMyObject::~CMyObject()
{
}
//The property to copy.
CMyObject& CMyObject::operator=(const CMyObject& newObject)
{
m_strTitle = newObject.m_strTitle;
m_nNumber = newObject.m_nNumber;
m_fMath = newObject.m_fMath;
m_fGeo = newObject.m_fGeo;
m_bUnder60 = newObject.m_bUnder60;
m_strMemo = newObject.m_strMemo;
m_dtStartTime = newObject.m_dtStartTime;
return *this;
}
BOOL CMyObject::IsEqual(CObject* prop)
{
CMyObject* pProp = (CMyObject*)prop;
if (pProp)
return (*this == *pProp);
return FALSE;
}
BOOL CMyObject::operator==(const CMyObject newObject) const
{
if(
GetTitle() == newObject.GetTitle() &&
GetNumber() == newObject.GetNumber() &&
GetMath() == newObject.GetMath() &&
GetGeo() == newObject.GetGeo() &&
GetUnder60() == newObject.GetUnder60() &&
GetMemo() == newObject.GetMemo() &&
GetStartTime() == newObject.GetStartTime() )
{
return TRUE;
}
return FALSE;
}
////////////////////////////////////////////////////////////////////////////
// CMyObject serialization
void CMyObject::Serialize(CArchive& ar)
{
CObject::Serialize(ar);
if (ar.IsStoring())
{
ar << m_strTitle;
ar << m_nNumber;
ar << m_fMath;
ar << m_fGeo;
ar << m_bUnder60;
ar << m_strMemo;
ar << m_dtStartTime;
}
else
{
ar >> m_strTitle;
ar >> m_nNumber;
ar >> m_fMath;
ar >> m_fGeo;
ar >> m_bUnder60;
ar >> m_strMemo;
ar >> m_dtStartTime;
}
}
/////////////////////////////////////////////////////////////////////////////
// CMyObject diagnostics
#ifdef _DEBUG
void CMyObject::AssertValid() const
{
CObject::AssertValid();
}
void CMyObject::Dump(CDumpContext& dc) const
{
CObject::Dump(dc);
}
#endif //_DEBUG
BOOL CMyObject::PutValue(const int &nPropId,const FO_VALUE &value)
{
BOOL bReturn = TRUE;
switch(nPropId)
{
case ID_PROP_TITLE:
{
SetTitle(value.m_strValue);
}
break;
case ID_PROP_NUMBER:
{
SetNumber(value.m_nValue);
}
break;
case ID_PROP_MATH:
{
SetMath(value.m_fValue);
}
break;
case ID_PROP_GEO:
{
SetGeo(value.m_fValue);
}
break;
case ID_PROP_UNDER60:
{
SetUnder60(value.m_bValue);
}
break;
case ID_PROP_MEMO:
{
SetMemo(value.m_strValue);
}
break;
case ID_PROP_STARTTIME:
{
SetStartTime(value.m_dtValue);
}
break;
default:
{
bReturn = FALSE;
}
break;
}
return bReturn;
}
BOOL CMyObject::GetValue(FO_VALUE &value,const int &nPropId)
{
BOOL bReturn = TRUE;
switch(nPropId)
{
case ID_PROP_TITLE:
{
value.m_nValueType = V_STRING;
value.m_strValue = GetTitle();
}
break;
case ID_PROP_NUMBER:
{
value.m_nValueType = V_INT;
value.m_nValue = GetNumber();
}
break;
case ID_PROP_MATH:
{
value.m_nValueType = V_FLOAT;
value.m_fValue = GetMath();
}
break;
case ID_PROP_GEO:
{
value.m_nValueType = V_FLOAT;
value.m_fValue = GetGeo();
}
break;
case ID_PROP_UNDER60:
{
value.m_nValueType = V_BOOL;
value.m_bValue = GetUnder60();
}
break;
case ID_PROP_MEMO:
{
value.m_nValueType = V_STRING;
value.m_strValue = GetMemo();
}
break;
case ID_PROP_STARTTIME:
{
value.m_nValueType = V_DATETIME;
value.m_dtValue = GetStartTime();
}
break;
default:
{
bReturn = FALSE;
}
break;
}
return bReturn;
}
|
That's all, all the source code of this tool is
included within the zip files.
