Download demo project - 29 Kb

There are many articles about docking toolbars, however, I felt that this was important enough to mention here. The same information can be found at Microsofts MSDN site, here it is in a nutshell: Add the following method to your CMainFrame class:

void CMainFrame::DockControlBarBottomOf(CControlBar* Bar,CControlBar* BottomOf)
{
CRect rect;
DWORD dw;
UINT n;

RecalcLayout();
BottomOf->GetWindowRect(&rect);
rect.OffsetRect(0,1);
dw=BottomOf->GetBarStyle();
n = 0;
n = (dw&CBRS_ALIGN_TOP) ? AFX_IDW_DOCKBAR_TOP : n;
n = (dw&CBRS_ALIGN_BOTTOM && n==0) ? AFX_IDW_DOCKBAR_BOTTOM : n;
n = (dw&CBRS_ALIGN_LEFT && n==0) ? AFX_IDW_DOCKBAR_LEFT : n;
n = (dw&CBRS_ALIGN_RIGHT && n==0) ? AFX_IDW_DOCKBAR_RIGHT : n;

DockControlBar(Bar,n,&rect);
}

void CMainFrame::DockControlBarLeftOf(CControlBar* Bar,CControlBar* LeftOf)
{
CRect rect;
DWORD dw;
UINT n;

RecalcLayout();
LeftOf->GetWindowRect(&rect);
rect.OffsetRect(1,0);
dw=LeftOf->GetBarStyle();
n = 0;
n = (dw&CBRS_ALIGN_TOP) ? AFX_IDW_DOCKBAR_TOP : n;
n = (dw&CBRS_ALIGN_BOTTOM && n==0) ? AFX_IDW_DOCKBAR_BOTTOM : n;
n = (dw&CBRS_ALIGN_LEFT && n==0) ? AFX_IDW_DOCKBAR_LEFT : n;
n = (dw&CBRS_ALIGN_RIGHT && n==0) ? AFX_IDW_DOCKBAR_RIGHT : n;

DockControlBar(Bar,n,&rect);
}

Now, in your CMainFrame::OnCreate, instead of using DockControlBar, use DockControlBarLeftOf:

	m_wndToolBar1.EnableDocking(CBRS_ALIGN_ANY);
	m_wndToolBar2.EnableDocking(CBRS_ALIGN_ANY);
	EnableDocking(CBRS_ALIGN_ANY);
	DockControlBar(&m_wndToolBar1);
	DockControlBarLeftOf(&m_wndToolBar2,&m_wndToolBar1);

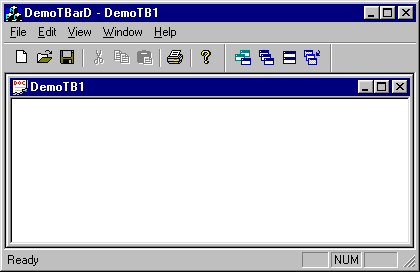

This will dock m_wndToolBar2 left of m_wndToolBar1.
