Introduction

What is Auto CAD DXF?

Drawing Interchange Format (DXF) files enable the interchange of drawings between AutoCAD and other programs. DXF files can be either ASCII or binary formats. Because ASCII DXF files are more common than the binary format, CadLib uses ASCII DXF format.

What is CadLib?

The CadLib is not a Computer Aided Design (CAD) program. It is a tool for creating DXF files that are used in the CAD programs. It consists of two parts. One of them is a Dynamic Link Library to create the DXF file. The other part is the programming interface. It is a class that integrates the cadio.dll functions. It can be used in Microsoft Visual C++ projects. In addition, the cadio.dll can be used in other Win32 programs.

Why use CadLib?

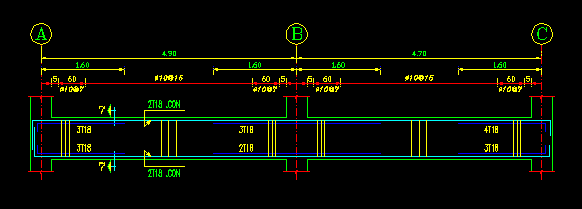

In some programs, it is needed to create a drawing output for use in other programs such as AutoCad. For example, in a "Building Detail Sheet Generator Program", the program needs to create a drawing output. And the most standard format for communicating drawing data is DXF.

DXF file structure

The DXF format is a tagged data representation of all the information contained in a drawing file. Tagged data means that each data element in the file is preceded by an integer number that is called a group code. A group code's value indicates what type of data element follows. This value also indicates the meaning of a data element for a given object (or record) type. Virtually all user-specified information in a drawing file can be represented in DXF format. (from AutoCad's DXF reference)

A DXF file consists of some sections. Each section has some drawing data in itself. The CadLib uses the following sections:

1. HEADER
2. TABLES
3. BLOCKS
4. ENTITIES

The main reference for DXF file structure that is used for CadLib is the AutoCad's DXF reference. You can find more information about DXF file structure here.

Classes

The classes are interfaces between CadIO.dll and the main program. "Test" has come with CadLib to demonstrate how to generate a DXF file with CDxfFileWrite and CDrawing classes.

CDxfFileWrite class

CDxfFileWrite gathers all the commands needed to directly create a DXF file. Usage of CDxfFileWrite is as follows:

1. Create the DXF file
   Collapse | Copy Code

   CDxfFileWrite dxffile;
   dxffile.Create( "d:\\test.dxf" );

2. Begin and end the HEADER section. It's here for compatibility with some CAD programs. Others work without having HEADER section.
   Collapse | Copy Code

   // Header Section ------------------------------------------
   dxffile.BeginSection(SEC_HEADER);
   dxffile.EndSection();
   // close HEADER section ------------------------------------

3. Begin the TABLES section and put the LAYER, LTYPE, STYLE, DIMSTYLE table-types as many as you want and then close the section
   Collapse | Copy Code

   // Tables Section ------------------------------------------
   dxffile.BeginSection(SEC_TABLES);

   // LTYPE table type -------------------------
   dxffile.BeginTableType(TAB_LTYPE);

   DXFLTYPE ltype;
   double elem[4];

   // Continuous
   ZeroMemory(<ype, sizeof(ltype));
   ltype.Name = "Continuous";
   ltype.DescriptiveText = "Solid line";
   dxffile.AddLinetype(<ype);

   // DASHDOT2
   ZeroMemory(<ype, sizeof(ltype));
   ltype.Name = "DASHDOT2";
   ltype.DescriptiveText = "Dash dot (.5x) _._._._._._._._._._._._._._._.";
   ltype.ElementsNumber = 4;
   ltype.TotalPatternLength = 0.5;
   ltype.Elements = elem;
   elem[0] = 0.25;
   elem[1] = -0.125;
   elem[2] = 0.0;
   elem[3] = -0.125;
   dxffile.AddLinetype(<ype);

   dxffile.EndTableType();
   // close LTYPE table type -------------------

   // LAYER table type -------------------------
   result &= dxffile.BeginTableType(TAB_LAYER);
   result &= dxffile.AddLayer("Layer1", 1, "Continuous");
   result &= dxffile.AddLayer("Layer2", 2, "Continuous");
   result &= dxffile.AddLayer("Layer3", 3, "Continuous");
   result &= dxffile.AddLayer("Layer4", 4, "Continuous");
   result &= dxffile.EndTableType();
   // close LAYER table type -------------------

   // STYLE table type -------------------------
   dxffile.BeginTableType(TAB_STYLE);

   DXFSTYLE tstyle;
   ZeroMemory(&tstyle, sizeof(tstyle));
   tstyle.Name = "Style1";
   tstyle.PrimaryFontFilename = "TIMES.TTF";
   tstyle.Height = 0.3;
   tstyle.WidthFactor = 1;
   dxffile.AddTextStyle(&tstyle);

   dxffile.EndTableType();
   // close STYLE table type -------------------

   // DIMSTYLE table type ----------------------
   dxffile.BeginTableType(TAB_DIMSTYLE);

   DXFDIMSTYLE dimstyle;

   // DIM1
   ZeroMemory(&dimstyle, sizeof(dimstyle));
   dimstyle.Name = "DIM1"; // DimStyle Name
   dimstyle.DIMCLRD = 2; // Dimension line & Arrow heads color
   dimstyle.DIMDLE = 0.0000; // Dimension line size after Extensionline
   dimstyle.DIMCLRE = 2; // Extension line color
   dimstyle.DIMEXE = 0.1800; // Extension line size after Dimline
   dimstyle.DIMEXO = 0.0625; // Offset from origin
   dimstyle.DIMBLK1 = "ClosedFilled";// 1st Arrow head
   dimstyle.DIMBLK2 = "ClosedFilled";// 2nd Arrow head
   dimstyle.DIMASZ = 0.1800; // Arrow size
   dimstyle.DIMTXSTY = "Style1"; // Text style
   dimstyle.DIMCLRT = 3; // Text color
   dimstyle.DIMTXT = 0.1800; // Text height
   dimstyle.DIMTAD = 1; // Vertical Text Placement
   dimstyle.DIMGAP = 0.0900; // Offset from dimension line
   dxffile.AddDimStyle(&dimstyle);

   dxffile.EndTableType();
   // close DIMSTYLE table type ----------------

   dxffile.EndSection();
   // close TABLES section ------------------------------------

4. Begin ENTITIES section and put entities data (LINE, CIRCLE, SOLID, TEXT, ARC, POINT, DIMLINEAR) and finally close the section
   Collapse | Copy Code

   // Entities Section ------------------------------------------
   dxffile.BeginSection(SEC_ENTITIES);

   // set current layer to Layer2
   dxffile.SetCurrentLayer("Layer2");
   // draw a line
   dxffile.Line(1.2, 3.3, 7.5, 7.7);
   // draw a circle
   dxffile.Circle(7.8, 4.3, 1.75);
   // set current layer to Layer4
   dxffile.SetCurrentLayer("Layer4");

   // draw a solid
   REALPOINT points[4];
   points[0].x = 10.4; points[0].y = 7.2;
   points[1].x = 13.6; points[1].y = 7.4;
   points[2].x = 13.1; points[2].y = 4.9;
   points[3].x = 10.9; points[3].y = 5.9;
   Solid(4, points);

   // set current textstyle to Style1
   dxffile.SetCurrentTextStyle("Style1");
   // draw text
   dxffile.Text("Sample Text", 5.9, 6.7, 0.3, 35);
   // draw a dimension line
   dxffile.SetCurrentDimStyle("DIM1");
   dxffile.DimLinear(6.05, 3, 9.55, 3, 9.55, 2, 0, "3.50");

   dxffile.EndSection();
   // close ENTITIES section ----------------------------------

5. Close the DXF file
   Collapse | Copy Code

   dxffile.Close();

CDrawing class

CDrawing class has all the commands to create a drawing in memory and save it as a DXF file. Usage of CDrawing is as follows:

1. Create the on-memory drawing
   Collapse | Copy Code

   CDrawing drw;
   drw.Create( );

2. Create new LAYER, LTYPE, STYLE, DIMSTYLE table-types as many as you want.
   Collapse | Copy Code

   // Tables Section ------------------------------------------
   // LTYPE table type -------------------------
   LTYPE ltype;
   OBJHANDLE objhandle1;

   // Continuous
   ZeroMemory(<ype, sizeof(ltype));
   strcpy(ltype.Name, "Continuous");
   strcpy(ltype.DescriptiveText, "Solid line");
   objhandle1 = drw.AddLinetype(<ype);

   // DASHDOT2
   ZeroMemory(<ype, sizeof(ltype));
   strcpy(ltype.Name, "DASHDOT2");
   strcpy(ltype.DescriptiveText,
     "Dash dot (.5x) _._._._._._._._._._._._._._._.");
   ltype.ElementsNumber = 4;
   ltype.PatternLength = 0.5;
   ltype.Elements[0] = 0.25;
   ltype.Elements[1] = -0.125;
   ltype.Elements[2] = 0.0;
   ltype.Elements[3] = -0.125;
   drw.AddLinetype(<ype);

   // LAYER table type -------------------------
   LAYER layer;

   // Layer1
   ZeroMemory(&layer, sizeof(layer));
   strcpy(layer.Name, "Layer1");
   layer.Color = 1;
   layer.LineTypeObjhandle = objhandle1; // Continuous
   drw.AddLayer(&layer);

   // Layer2
   ZeroMemory(&layer, sizeof(layer));
   strcpy(layer.Name, "Layer2");
   layer.Color = 2;
   layer.LineTypeObjhandle = objhandle1; // Continuous
   drw.AddLayer(&layer);

   // STYLE table type -------------------------
   STYLE style;

   ZeroMemory(&style, sizeof(style));
   strcpy(style.Name, "Style1");
   strcpy(style.PrimaryFontFilename, "TIMES.TTF");
   style.LastHeightUsed = 0.3;
   style.WidthFactor = 1;
   objhandle1 = drw.AddTextStyle(&style);

   // DIMSTYLE table type ----------------------
       DIMSTYLE dimstyle;

   // DIM1
   ZeroMemory(&dimstyle, sizeof(dimstyle));
   strcpy(dimstyle.Name, "DIM1"); // DimStyle Name
   dimstyle.dimclrd = 2; // Dimension line & Arrow heads color
   dimstyle.dimdle = 0.0000; // Dimension line size after Extensionline
   dimstyle.dimclre = 2; // Extension line color
   dimstyle.dimexe = 0.1800; // Extension line size after Dimline
   dimstyle.dimexo = 0.0625; // Offset from origin
   strcpy(dimstyle.dimblk1, "ClosedFilled");// 1st Arrow head
   strcpy(dimstyle.dimblk2, "ClosedFilled");// 2nd Arrow head
   dimstyle.dimasz = 0.1800; // Arrow size
   dimstyle.dimtxstyObjhandle = objhandle1;// Text style
   dimstyle.dimclrt = 3; // Text color
   dimstyle.dimtxt = 0.1800; // Text height
   dimstyle.dimtad = 1; // Vertical Text Placement
   dimstyle.dimgap = 0.0900; // Offset from dimension line
   drw.AddDimStyle(&dimstyle);

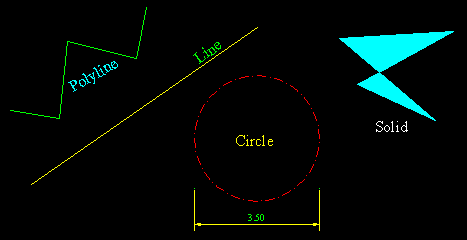

3. Make entities data (LINE, CIRCLE, SOLID, TEXT, ARC, POINT, DIMLINEAR, POLYLINE).
   Collapse | Copy Code

   // Entities Section ------------------------------------------
   // set current layer to Layer2
   drw.SetLayer("Layer2");
   // draw a line
   drw.Line(1.2, 3.3, 7.5, 7.7);
   // draw a circle
   drw.Circle(7.8, 4.3, 1.75);
   // set current layer to Layer1
   drw.SetLayer("Layer1");

   // draw a solid
   REALPOINT points[4];
   points[0].x = 10.4; points[0].y = 7.2;
   points[1].x = 13.6; points[1].y = 7.4;
   points[2].x = 13.1; points[2].y = 4.9;
   points[3].x = 10.9; points[3].y = 5.9;
   drw.Solid(points[0], points[1], points[2], points[3]);

   // set current textstyle to Style1
   drw.SetTextStyle("Style1");
   // draw text
   drw.Text("Sample Text", 5.9, 6.7, 0.3, 35);
   // draw a dimension line
   drw.SetDimStyle("DIM1");
   drw.DimLinear(6.05, 3, 9.55, 3, 9.55, 2, 0, "3.50");

4. Save data to a DXF file.
   Collapse | Copy Code

   drw.SaveDXFFile(DxfFileName);

5. Destroy CDrawing and free allocated memory.
   Collapse | Copy Code

   drw.Destroy();

Loading data from a DXF file

1. Create the on-memory drawing.
   Collapse | Copy Code

   CDrawing drw;
   drw.Create( );

2. Use LoadDXFFile member function to load DXF file into memory.
   Collapse | Copy Code

   drw.LoadDXFFile("Sample.dxf");

That's all!
