E-XD++ Diagrammer is a top-of-the-line real-time graphics and data
visualization product with various additional packages and deployment
options.
Main features:
The
flexible
component-based architecture of the Diagrammer with open data interface
allows applications to use it as a add-on graphical interface module,
without locking them into a proprietary application framework, which is the
case with many other packages. The unique features of the Toolkit, as below:
1. Ships
with full 100%
VC++ MFC Source Codes.
2. Ships
with both ActiveX Control and VC++ Library. It can be used with .NET, VB,
VC++, JAVA, etc.
3. With
shapedesigner, you can define any kind of symbols quickly and easily.
4. UCanCode
interactive
Graphics DiagramEditor allows developers to rapidly create and prototype
dynamic graphical displays and custom graphical components
without writing low-level graphics code, saving months of
development time and facilitating the components' reuse.
5. It
has high performance, and so it works very quickly on lower computer.
6. Full
tested with Visual Studio 6.0, Visual Studio.NET 2010 - Visual Studio 2023.
7. It
has design mode and running mode.

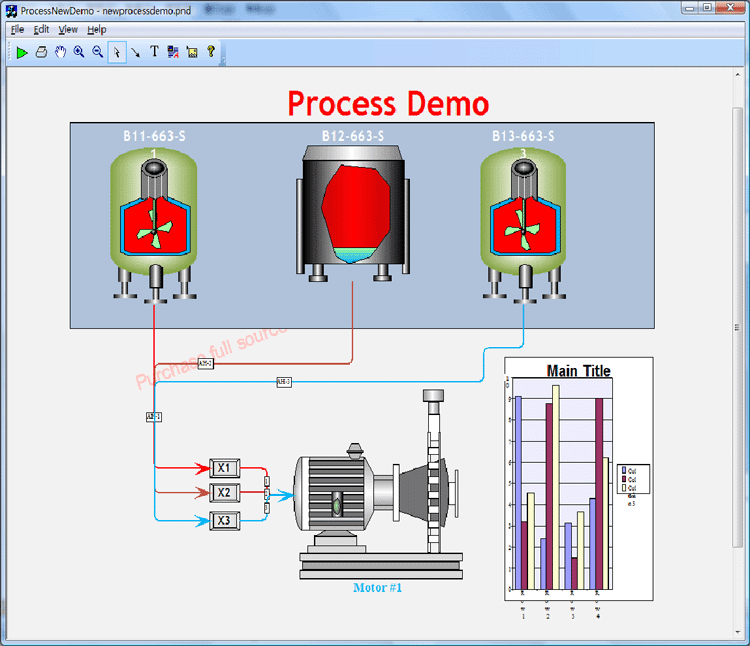

The following screen shots is a sample
application of this solution, all the vc++ source codes of the
following screen shots will be shipped with full edition of E-XD++
Enterprise Edition Suite:
Through its .NET and C++ graphics
libraries and components, UCanCode provides the industry’s most
comprehensive set of graphics tools for creating sophisticated,
interactive user displays. UCanCode's graphics products enhance
decision-making speed and ability by making vast quantities of complex data
more comprehensible and manageable for users. Developers save 50 to 80
percent of development time when creating displays with UCanCode
Visualization.
The leader
in visualization component -- FULL VC++ Source Code Shipped!
E-XD++ Diagrammer Suite is the the world’s
leading VC++ and .NET visualization component. Renowned for incredibly rich
graphics, XD++ helps thousands developers build applications that offer
unparalleled functionality. Outstanding productivity lowers project risk and
reduces maintenance headaches. With 20 years of dedicated research and
development, UCanCode leads the market for visualization technologies,
providing outstanding customer support.
Powerful, flexible, and easy to use Diagram
Components.
Powerful and flexible enough to create diagrams exactly the way you want
them to appear. So easy to use that you will be able to prototype your
application in just a few minutes.
Feature rich.
With features such as automatic layout, multiple layers, collapsible
sub-graphs, snap-to connection points, XML, SVG, and more, E-XD++ Have the
power and flexibility you need to create sophisticated diagrams, quickly and
easily. Events such as click, double-click, hover, select, rubber-band
select, copy, delete, resize and move are supported. Operations such as
drag-and-drop, unlimited undo/redo, and clipboard operations are common and
complex, and are expected by today's sophisticated users. it full supports
importing ArcGis, SVG and DXF File format.
Performance and Scalability.
UCanCode E-XD++ Capable of handling many thousands of nodes and edges, up to
hundreds of thousands depending upon the complexity of the nodes you wish to
draw and the operations you wish to allow. Our graphical classes are
extremely lightweight objects enabling outstanding performance.
Save Time and Money and gain Reliability.
A diagram is worth 1,000 words, and E-XD++ is shipped with more than 500,000 lines of well designed and well tested code! It is used by hundreds of the world's most quality conscious companies. It will saves you thousands of hours of complex coding and years of maintenance.
