UCanCode E-XD++ Visualization ToolKit
is an extremely flexible and robust graphical framework for building visual
interfaces that display real-time data, from Process Control operator
displays and HMI screens to Traffic and Telemetry Monitoring displays and
Supply Chain visualizations.
UCanCode provides a complete set of
services, consisting of design tools and
a software
development kit (SDK), for developers who want to create a user
interface for industrial monitoring and
process control drawing applications. These displays feature
highly customized graphical objects that connect to underlying real-world
data.
Developers prefer UCanCode's solutions
because they are easy to use, completely customizable, and can deploy to
both the desktop and the Web. UCanCode is the industry’s leading
real-time SPC software, automating quality data collection and
analysis
E-XD++ Visulization Graphics Toolkit is the
best toolkit for building any HMI Software Screen, as below:
1.

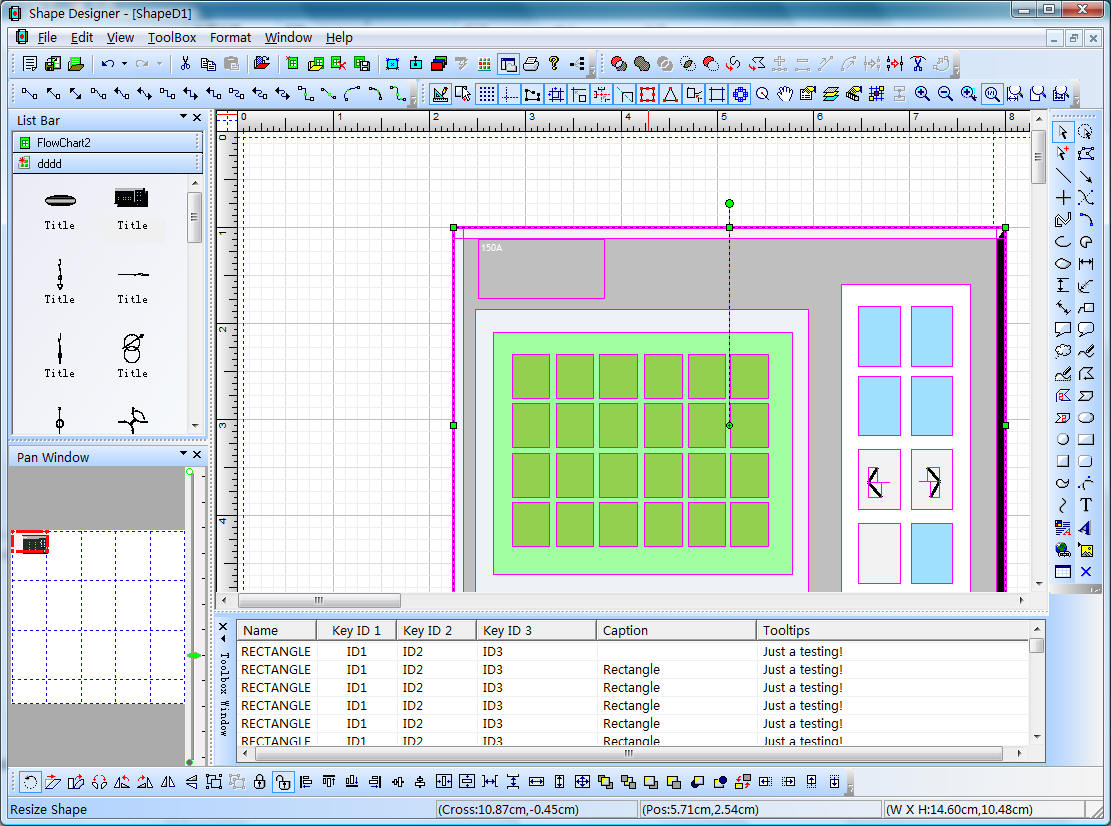

Design the HMI
symbols with shapedesigner：
With E-XD++ full edition, there is a shapedesigner
application shipped, with this diagramming tool, you can
use many advance features to build any kind of
HMI Software
symbols, as below：
When one composite symbol
is designed, just use Copy/Paste to place it within the
toolbox window at left side. These HMI Symbols
will be ready for design HMI Screen in
future.

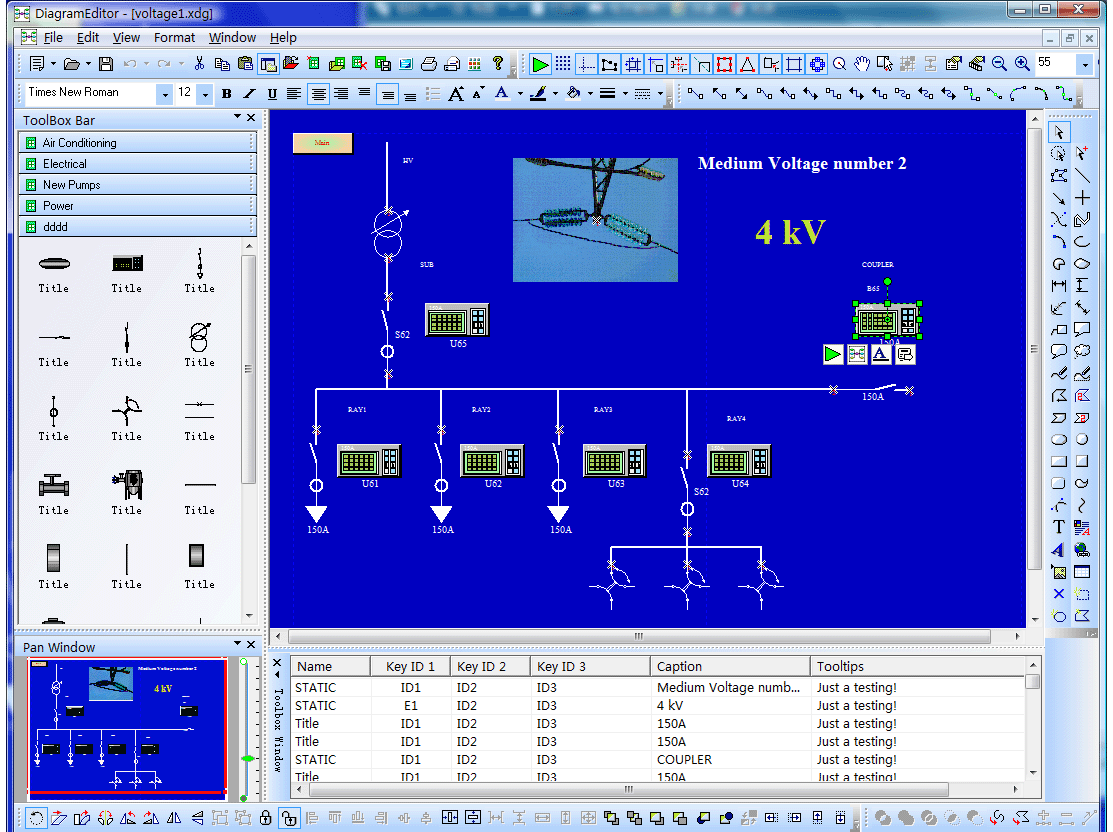

2. Design
HMI Graphics Software Screen ：
With E-XD++ full edition,
there is also a ready to use HMI Screen design tool shipped, with this
tool, you can use any symbols within the toolbox window
at left side to create any screen as you want, just drag
and drop, very simple and easy：
If you want to identify any
shape on the screen, just use the following dialog to
define some key value. There are three key values that
can be used to do this work, as below:
We change it's key value 1
to K2.
After one
HMI Software
Screen is finished, you can save it to a xdg file. You
can design as many screen as you want.
3. Building your HMI Software：
With full edition of E-XD++
Visualization Component, there is an appwizard that will
help you building a base framework of
HMI Software without
written a line of codes, after the base framework of
your application is finished, you can import any XDG
files into your application, (Please remember the
resource type must be XDGRes), to load a
HMI Screen just
call the following codes, it is very easy：
LoadXdgFromResource(IDR_MAIN,
_T("XdgRes"), FALSE);
In fact, this line of code
can be called at any place if you want to load any new
screen at any time.
4 .
Update the screen with data：
Mostly we can use the WM_TIMER of CWnd to recieve the
data and refresh the HMI
Screen, if you want to update only one shape, just call
UpdateControl of this shape, but if you want to update a
list of shapes one time, we recommend you to call
UpdateShapes, this will works more effective. If you want to handle the
click event, you can DoButtonClickEvent to do that.

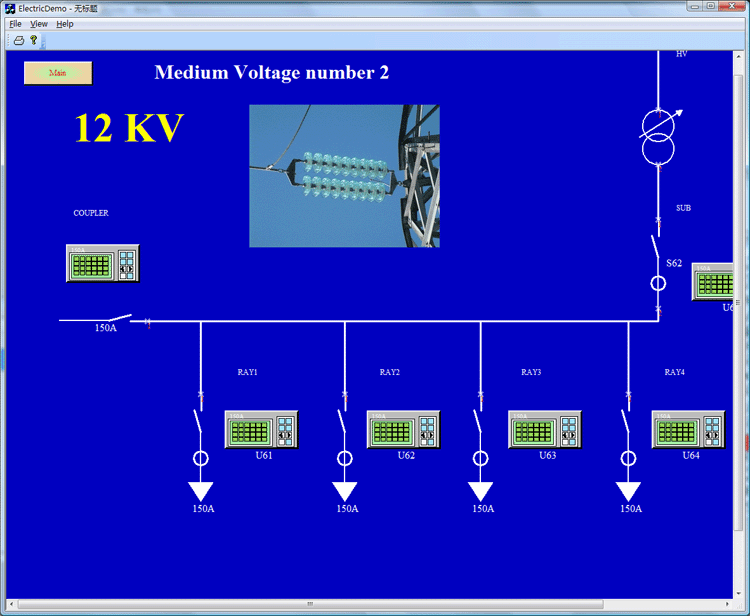

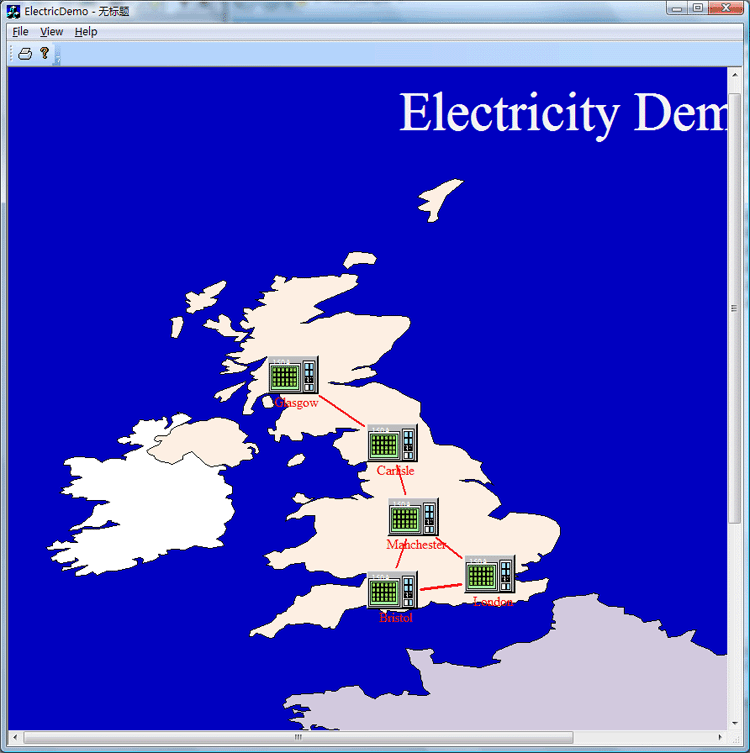

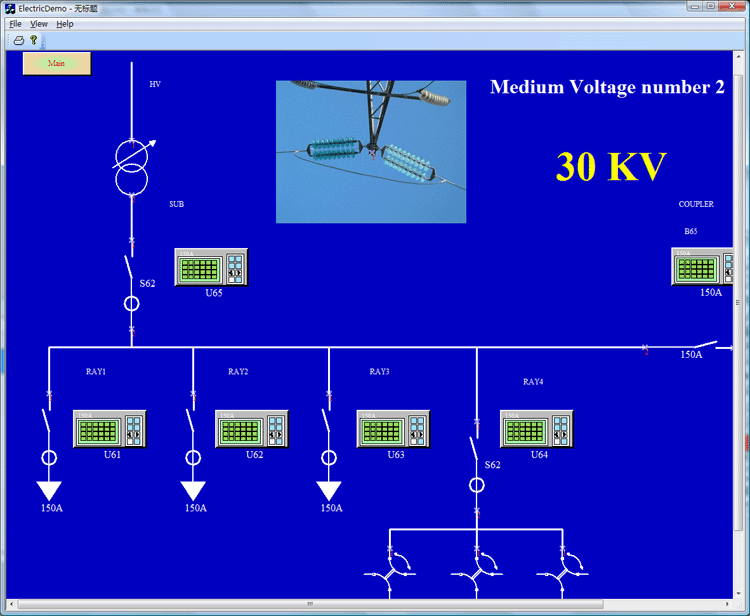

That's all, below is the
running - time mode of this sample, this sample has
three XDG hmi screen, click any item to switch to a new
screen.
HMI Graphics
Software Component
Process
Control Diagram
Full
VC++ Source Code
Real - time
Drawing
Very easy to use shape Designer
SVG Import
SVG Export.
DXF Import and Export
XML Loading and Saving
The leader in visualization component -- FULL
VC++ Source Code Shipped!
E-XD++ Enterprise Suite is the the world’s
leading VC++ and .NET visualization component. Renowned for incredibly rich
graphics, XD++ helps thousands developers build applications that offer
unparalleled functionality. Outstanding productivity lowers project risk and
reduces maintenance headaches. With 20 years of dedicated research and
development, UCanCode leads the market for visualization technologies,
providing outstanding customer support.
Powerful, flexible, and
easy to use Diagram Components.
Powerful and flexible enough to create diagrams exactly the way you want
them to appear. So easy to use that you will be able to prototype your
application in just a few minutes.
Save Time and Money and
gain Reliability.
A diagram is worth 1,000 words, and E-XD++ is shipped with more than 500,000 lines of well designed and well tested code! It is used by hundreds of the world's most quality conscious companies. It will saves you thousands of hours of complex coding and years of maintenance.
Download
this HMI Sample
The
VC++ source codes of this sample is shipped with E-XD++
Library Enterprise Edition, order it now.
